Profile 54E5 (54E1AHC) rail:
Description:
54E5 (54E1AHC) rail is manufactured according European Standard EN 13674-1, with mass of 54,42 kg per meter.

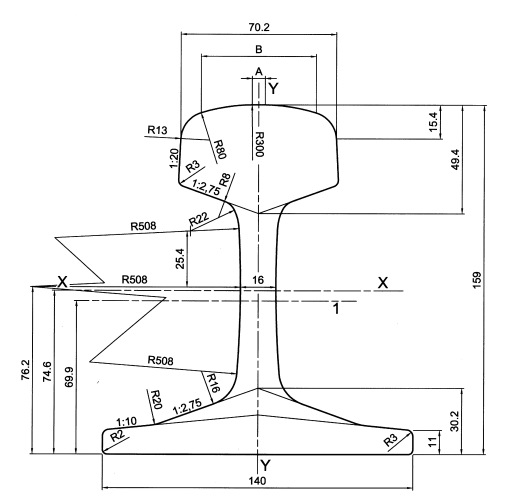

Dimensions:
| Profile | Standard | Dimensions mm | Section S | Mass m | ||||
|---|---|---|---|---|---|---|---|---|
| H | B | C | D | E | cm² | kg/m | ||
| European standard EN 13674-1 | ||||||||
| 54 E5 (54E1AHC) | EN 13674 – 1 | 159 | 140 | 70,20 | 49,40 | 16 | 69,32 | 54,42 |
